The Aluminum Shell
-
0.1" 5052 aluminum monocoque shell are riveted and sandwiched together to form a single rigid, frameless shell. There is no separate frame. The shell is the structure.
-
Aluminum won’t rot, mold, or decay. There’s nothing in the shell that can break down over time.
-
Sunlight or UV does not break down or shorten life shell
-
Bright uncoated aluminum reflects heat and helps maintain interior temperature, even in direct sun
Stage 2: Birth of a Kimbo
-
We assemble pieces together and then start to caulk the interior
-
Install tie-down brackets.

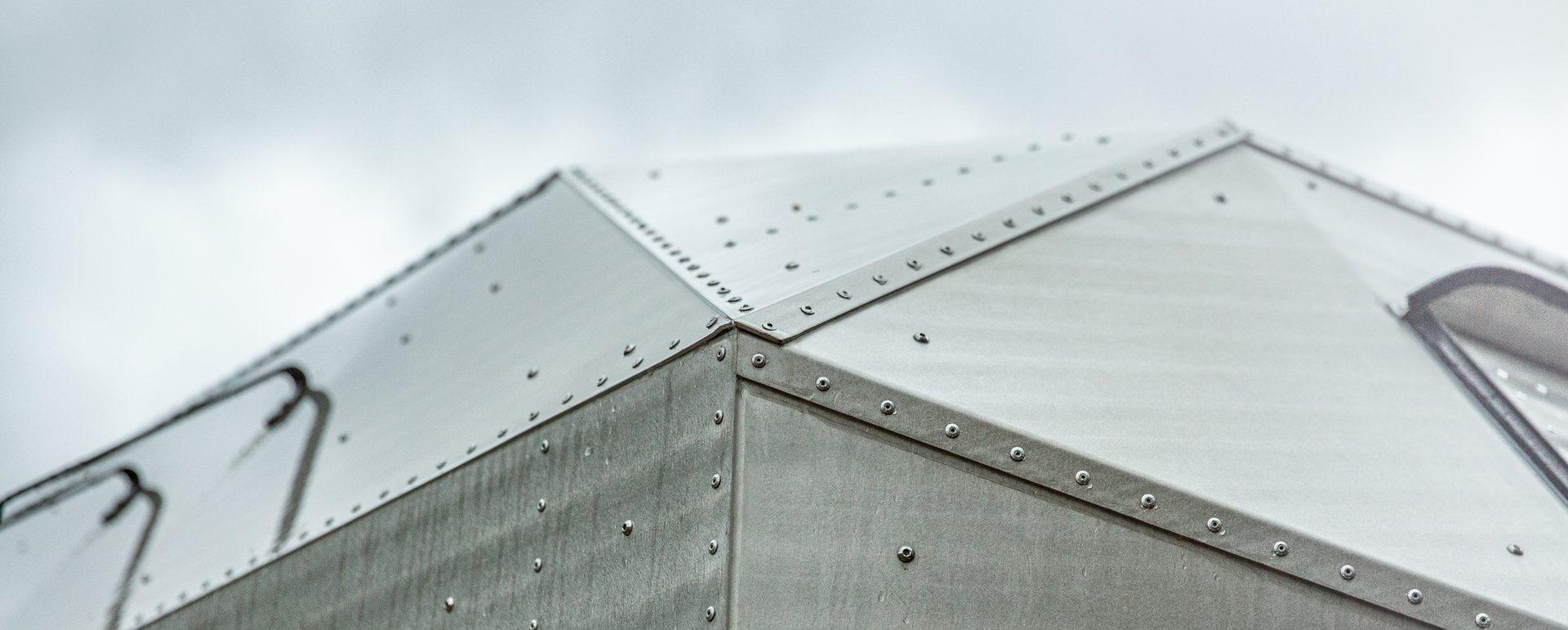

Secure the camper with tousands of rivets
-
Kimbo rivets are kept tight at 1.5 inches so the shell is as strong as it can be—while other camper manufacturers increase spacing to as much as 3 inches.
-
Rivets distribute loads across many points, so individual failures are easily repairable without weakening the structure, unlike glued joints that fail as a whole
Stage 3
-
Jack brackets, ladder, interior, wiring
-
Start lining the propane bay
-
1" R5 insulation is applied to every panel of the camper for good insulation
Starting installing in the interior:
-
Trim pieces
-
Battery
-
Wiring
-
Baskets
-
Lighting
-
Storage
Stage 1 : Structural Assembly
We take all of these parts that are nested together and we start to make them into a camper
-
Beginnings of electrical, wooden partition, propane bays, metal partitions
Final Stage: Quality Control & Inspection
-
We then pressure-test the camper, checking every seal to make sure it doesn’t leak
-
Each camper is then thoroughly inspected and gone over with a fine-tooth comb
How It's Built
Kimbo is constructed similarly to aluminum boats and designed for constant exposure, movement, and long-term use. It’s built to handle harsh conditions without rot or hidden damage, prioritizing repairability and durability over sealed, disposable construction.
Full Video Walkthrough
Serviceability
Easy to Service
-
Insulation is not glued to the exterior shell, allowing interior panels to be removed for easy access
-
Full access makes cleaning, repair, and upgrades possible over time.
-
Rivets distribute loads across many points, so individual rivet failures can be easily repaired without weakening the structure.
No End-of-Life Design
-
Built to be repaired indefinitely and fully recyclable, not abandoned, landfilled, or left to rot.
Insulation
-
Applied Everywhere: 1" R5 rigid foam insulation is applied to every panel of the camper, including the ceiling, floor, walls, and detailed cutouts like the propane hutch.
-
Won’t Sag or droop: Because the foam is rigid, insulation won’t sag, droop, or separate over time.
-
Easily Serviceable: Each insulation panel is a custom part with its own part number and can be removed or replaced individually by removing the thumb screws.
Interior Details
Bamboo Entryway
Sealed entry zone: Keeps wet boots, muddy gear, and debris contained, helping the interior stay clean and dry.
Removable stomp tray: Allows easy cleaning and prevents water buildup or mildew.
Windows
Material - Acrylic windows: Lighter and more flexible than glass, making them highly shatter-resistant for off-road use.
Standard RV Components: Not proprietary parts, so replacements and repairs are straightforward and readily available.
Minimized condensation: Due to the spaced out double-pane design, even when blackout blinds are in use.
